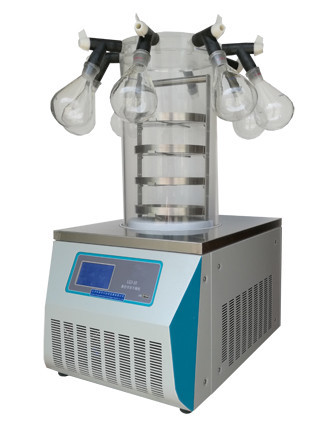

BIONOON-10C 多歧管真空冷冻干燥机 Multi-manifold Vacuum freeze-drying machine

BIONOON-10C多歧管普通实验型真空冷冻干燥机特点和应用： BIONOON-10C multi-manifold general experimental vacuum freeze dryer Features and applications: 适用于散装（液态、糊状、固态）常规物质的冷冻干燥，并可在干燥室外部接装烧瓶，对旋冻在瓶内壁的物料进行干燥，这时烧瓶作为容器接在干燥箱外的歧管上，烧瓶中的物料靠室温加热，通过多歧管开关装置，可按需要随时取下或装上烧瓶，不需要停机。Suitable for freeze-drying of conventional substances in bulk (liquid, paste, solid), and can be connected to the flask outside the drying room, the material frozen in the inner wall of the bottle is dried, then the flask is connected to the manifold outside the drying box as a container, the material in the flask is heated by room temperature, through the multi-manifold switch device, can be removed or installed at any time as needed, without stopping.

所属分类：

真空冷冻干燥机

产品描述

BIONOON-10系列实验型真空冷冻干燥机主要用在医学、制药、生物研究、化工和食品等领域。经冷冻干燥处理的物品易于长期保存，加水后能恢复到冻干前状态并保持原有生化特性。BIONOON-10系列冷冻干燥机，适用于实验室使用或少量生产，可满足大多数实验室常规冻干的要求。

The BIONOON-IO series experimental vacuum freeze dryer is widely used in medicine, pharmaceutical, biological research, chemical and food fields.The freeze-drying items are easy to preserve for a long time, and can return to the pre-lyophilized state and maintain the original biochemical characteristics after adding water。BIONOON-IO freeze dryer, suitable for laboratory use or small production, can meet the requirements of routine lyophilization of most laboratories.

BIONOON-10C 多歧管真空冷冻干燥机产品特点： [Product Features]

1.一体式结构设计，体积小、无外置法兰、使用方便、无泄漏。

Integrated structure design, small size, no external flange, easy to use, no leakage.

2.所有与产品接触的材料均使用惰性材料，满足GLP的要求。

All materials in contact with the product use inert materials that meet the requirements of the GLP.

3.冷阱和操作台面采用不锈钢材质，防腐蚀，易清洁。

The cold trap and operating table are made of stainless steel for corrosion prevention and easy to clean.

4.全不锈钢充气（放水）阀门本公司自行设计、生产，安全、防腐、无泄漏。

All stainless steel inflatable (water) valve are designed and produced by our company to secure its safety, corrosion and no leakage.

5.冷阱开口大，无内盘管，带样品预冻功能，无需低温冰箱。

The cold trap has a large opening, no inner coil tube, with sample prefreezing function, and no need for low-temperature refrigerator.

6.专业的气体导流技术，冷阱捕冰均匀，捕冰能力强。

Professional gas diversion technology, so that to catch ice uniformly and forcely.

7.国际知名品牌压缩机，高效节能、使用寿命长、噪音低。

International famous brand compressor of high efficiency and energy saving, long service life, low noise.

8.知名品牌真空泵，抽速大，实现更高的极限真空度。

Well-known brand vacuum pump with high pumping speed to achieve a higher limit vacuum degree.

9.工业级嵌入式FD-LAB冻干机专用控制系统，具有较高的可靠性和稳定性。

Industrial grade embedded FD-LAB special control system with high reliability and stability.

10.智能化数据记录系统，可查询历史曲线及历史记录，并可实现数据记录U盘导出。

Intelligent data recording system which can query the history curve and record, and can realize the data recording U disk export.

11.液晶显示、并记录冷阱温度曲线、样品温度曲线、真空度曲线，数据导出可通过电脑浏览打印及多种操作。

The touch screen displays and records the cold trap temperature curve, sample temperature curve and vacuum degree curve, besides, the data export can be browsed and printed by computer。

BIONOON-10C 多歧管实验型真空冷冻干燥机技术参数：Technical parameters:

冻干面积：0.12㎡ Freeze-dried area: 0.12㎡

物料盘尺寸：Ф200mm Material plate size: 200mm

物料盘数量:4个 Quantity of material plates: 4

物料盘间距：70mm Material tray spacing: 70mm

茄型瓶规格及数量：100/250/500/1000ml，各2个

Specification and quantity of nightshade bottle: 100/250/500/1000ml，two each

冷阱温度：≤-56℃（空载），可选≤-80℃（空载） Cold trap temperature: ≤-56℃ (no load), optional ≤-80℃ (no load)

冷阱深度：140mm Cold trap depth: 140mm

冷阱直径：Ф215mm Cold trap diameter: 215mm

捕水能力：3-4kg/24h Water capture capacity: 3-4kg/24h

抽气速率：2L/S Pumping rate: 2L/S

极限真空度：≤5pa（空载） Limit vacuum: ≤5pa (no load)

装机功率：970w Installed power: 970w

主机重量：41kg Host weight: 41kg

主机外形尺寸：615×450×370mm Main frame dimensions: 615×450×370mm

-80℃主机外形尺寸：850×680×405mm -80℃ Main machine dimensions: 850×680×405mm

干燥室尺寸：Ф260×465mm Drying chamber size: diameter 260×465mm

冷却方式：风冷 Cooling method: air cooling

除霜模式：自然化霜 Defrosting mode: natural defrosting

盘装物料：1.2L（料厚10mm） Tray loading material: 1.2L (material thickness 10mm)

BIONOON-10C 多歧管实验型真空冷冻干燥机选配功能：

BIONOON-10C Multi-manifold experimental vacuum freeze dryer Optional functions:

冷阱温度-80℃ Cold trap temperature -80℃

共晶点测试仪 Eutectic point tester

真空泵防返油装置 Oil mist filtration system

油雾过滤系统 Oil mist filtration system

真空度调节 Vacuum adjustment

回填过滤器 Backfill filter

电容式真空计 Capacitive vacuum gauge

50ml茄型瓶 50ml Bottle of nightshade
广口瓶装置（600ml/1200ml） Wide mouth bottle device

进口品牌真空泵 Imported brand vacuum pump

非标定制 Non-standard customization

BIONOON-10C多歧管普通实验型真空冷冻干燥机特点和应用：

BIONOON-10C multi-manifold general experimental vacuum freeze dryer Features and applications:

适用于散装（液态、糊状、固态）常规物质的冷冻干燥，并可在干燥室外部接装烧瓶，对旋冻在瓶内壁的物料进行干燥，这时烧瓶作为容器接在干燥箱外的歧管上，烧瓶中的物料靠室温加热，通过多歧管开关装置，可按需要随时取下或装上烧瓶，不需要停机。

Suitable for freeze-drying of conventional substances in bulk (liquid, paste, solid), and can be connected to the flask outside the drying room, the material frozen in the inner wall of the bottle is dried, then the flask is connected to the manifold outside the drying box as a container, the material in the flask is heated by room temperature, through the multi-manifold switch device, can be removed or installed at any time as needed, without stopping.

BIONOON-10C 多歧管实验型真空冷冻干燥机包装清单：

BIONOON-10C Multi-manifold experimental vacuum freeze dryer Packing list

冻干机主机×1 Freeze-drying machine host ×1

真空泵×1 Vacuum pump ×1

普通干燥架×1 Ordinary drying rack ×1

多歧管普通型干燥室×1 Multi-manifold conventional drying chamber x1

样品盘Ф200毫米×4 Sample plate size: 200mm ×4

预冻架×1 Pre-freezing rack ×1

茄型瓶×8 Bottle of nightshade×8
橡胶阀×8 Rubber valve×8

电路图×1 Circuit diagram ×1

使用说明书×1 Instruction manual ×1

产品保修卡×1 Product warranty card ×1
