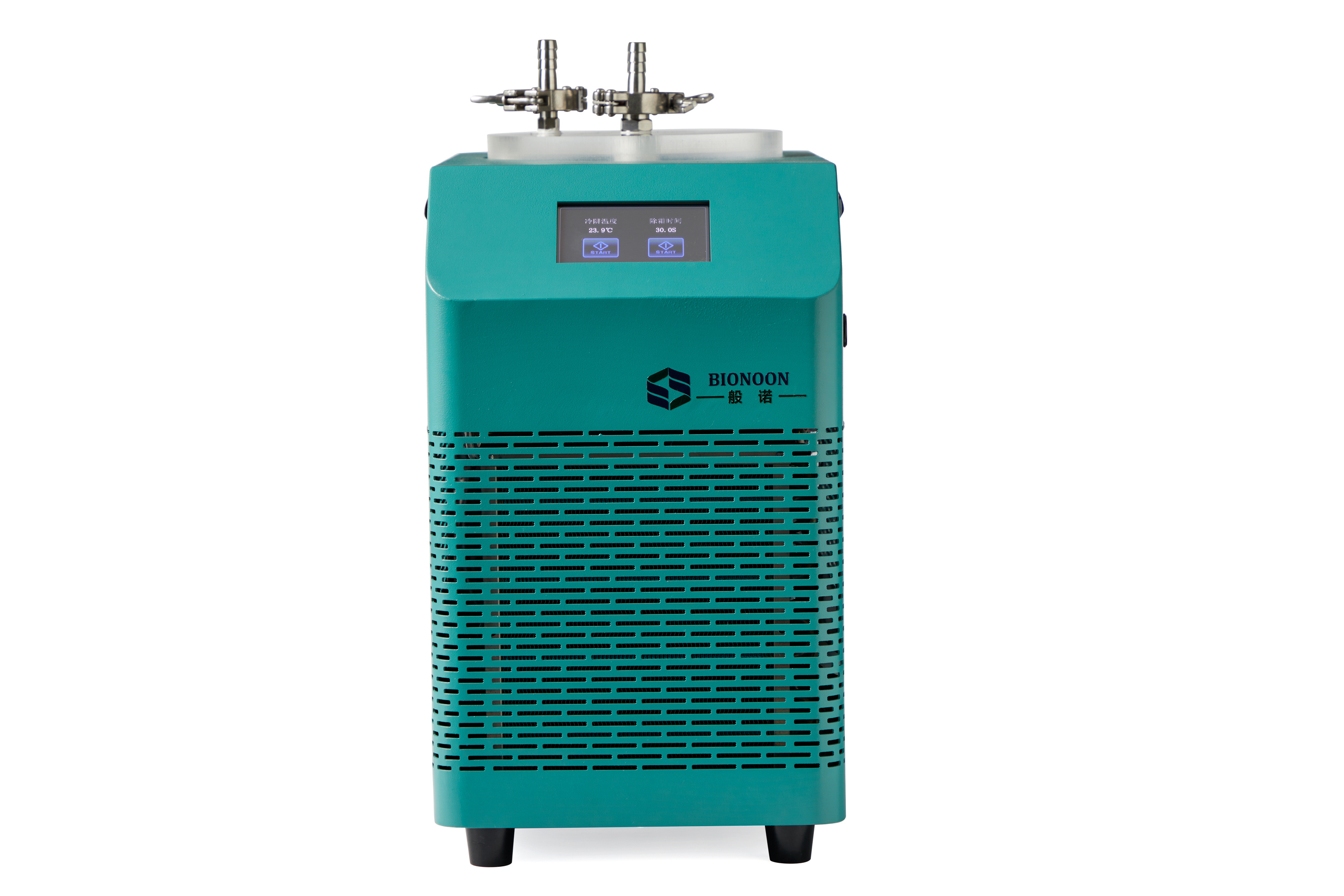

超低温冷阱Ultra-low temperature cold trap

上海般诺生物科技有限公司生产的超低温冷阱是新型的高效溶剂回收装置,用于冷凝溶剂蒸汽并回收溶剂,尤其是有机溶剂回收。冷阱可显著提高真空浓缩系统的效率,蒸汽的减少提高了系统的真空度,从而加快浓缩过程。 The ultra-low temperature cold trap produced by Shanghai Bionoon Biotechnology Co., Ltd. is a new type of high-efficiency solvent recovery device, which is used to condense solvent vapor and recover solvent, especially in organic solvent recovery. The cold trap can significantly improve the efficiency of the vacuum concentration system, and the reduction of steam increases the vacuum of the system, thereby speeding up the concentration process.

所属分类:

产品描述

一、【工作原理】Work Principle

超低温冷阱是新型的高效溶剂回收装置,用于冷凝溶剂蒸汽并回收溶剂,尤其是有机溶剂的回收。冷阱可显著提高真空浓缩系统的效率,蒸汽的减少提高了系统的真空度,从而加快浓缩过程。

The ultra-low temperature cold trap is a new type of highly efficient solvent recovery device, which is used to condense solvent vapor and recover solvents, especially organic solvents. The cold trap can significantly improve the efficiency of the vacuum concentration system, and the reduction of steam increases the vacuum degree of the system, thus speeding up the concentration process.

二、BIONOON 低温冷阱【产品特点】Product Features

1.采用原装进口压缩机,制冷效果好;

Adopt the original imported compressor, good cooling effect;

2.内置冷凝管,冷阱温度低,捕集能力更强;

Built-in condensing tube, low cold trap temperature, better trapping capacity;

3.一键启动化霜功能,可任意修改除霜时间,除霜速度快;

One key to start the defrosting function, can be arbitrarily modified defrosting time, defrosting speed;

4. 冷阱腔体采用304不锈钢冷阱槽体一体成型,盘管在槽内,盘管外圈到槽内壁周围留20-30mm空间,方便用户清理清洁。

The cold trap cavity is made of 304 stainless steel cold trap body, the coil is in the groove, and the outer coil is left 20-30mm space around the inner wall of the groove, which is convenient for users to clean;

5. 冷阱采用PLC控制,4.3寸触摸屏显示,显示冷阱温度,设置时间,总运行时间,除霜时间,一键启动。

The cold trap adopts PLC control, 4.3 inch touch screen display, display cold trap temperature, set time, total running time, defrosting time, one button start

6. .冷阱容量大,立式结构;Large cold trap capacity, 3L, vertical structure

7. 冷阱腔体采用R型圆角设计,无死角,易清洁;

 The cold trap cavity adopts R-type rounded corner design, no dead corners, easy to clean;

8. 透明玻璃盖设计,更加美观且易于观察。

Transparent glass cover design, more beautiful and easy to observe.

9. 冷阱具有排液口,排液方便。

The cold trap has a drain port, which is convenient to drain.

三、BIONOON 低温冷阱【技术参数】Technical Parameters

Technical Specification

BIONOON-65D3

BIONOON-110D8

Cold trap temperature

-65°C

-110°C

Cold trap capacity

3L

8L

Power

700W

1500W

Dimensions (L*D*H)

260*500*480mm

260*520*480mm
